Why Will My Toyota Camry Only Take One Gallon of Gas Before the Pump Shuts Off?
If your Toyota Camry suddenly won’t accept fuel after hitting a speed bump or pothole, there is likely a problem within the EVAP (Evaporative Emissions) or fuel filler system.

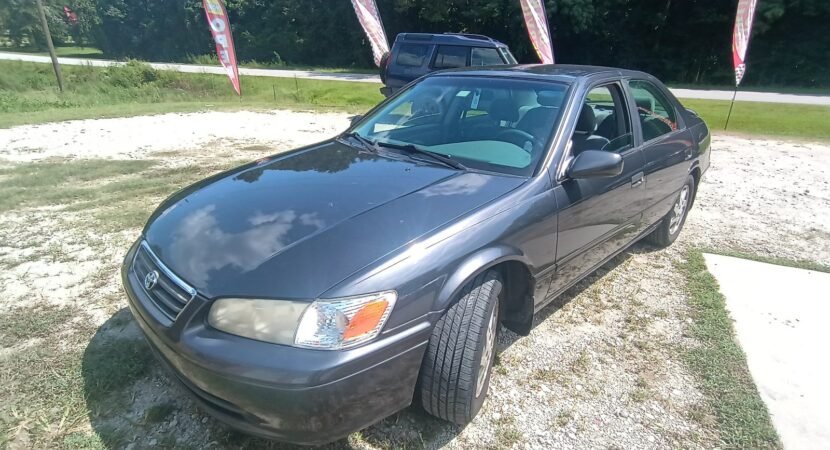

At Mobicare Automotive Repair in Hubert, NC, we recently diagnosed a 2000 Toyota Camry that developed this exact problem. Immediately after striking a speed bump, the customer noticed the fuel pump would shut off after about one gallon and the check engine light illuminated.
- Vehicle: 2000 Toyota Camry
- Customer Concern: Fuel pump nozzle repeatedly clicked off after approximately one gallon
- Additional Symptom: Check engine light illuminated after impact
- Diagnosis: Fuel system / EVAP system diagnostics performed
- Location: Hubert, NC
Common Symptoms
If your vehicle has suffered an impact underneath, you may notice:
- Fuel pump shuts off repeatedly during refueling.
- Tank cannot be filled completely.
- Check engine light comes on.
- EVAP-related trouble codes.
- Fuel odor or pressure release while refueling.
These symptoms often indicate a restriction in the fuel filler or EVAP venting system.
How We Diagnosed the Problem
Rather than replacing parts based on a guess, we performed a systematic inspection.
Our technicians:
- Verified the customer’s concern.
- Confirmed the concern began immediately after the impact.
- Inspected the fuel filler neck.
- Inspected the EVAP vent system.
- Inspected the fuel tank and related components for damage.
- Performed diagnostic testing on the EVAP system.
- Retrieved and analyzed diagnostic trouble codes.
This process helps identify the actual cause instead of replacing unnecessary parts.
Why Does the Pump Keep Clicking Off?
When gasoline enters the fuel tank, displaced air must escape through the EVAP vent system.
If that vent becomes restricted or damaged, pressure builds inside the tank. The fuel pump nozzle senses this pressure and automatically shuts off, making it appear that the tank is full even though it isn’t.
Common causes include:
- Restricted EVAP vent valve
- Damaged charcoal canister
- Kinked filler neck
- Damaged vent hose
- Impact damage to the fuel tank
- Foreign object in the filler neck
Why Proper Diagnosis Matters
Many people immediately replace:
- Gas caps
- Fuel pumps
- Fuel filler necks
without confirming the actual cause.
Proper testing can prevent unnecessary repairs and ensure the correct component is replaced the first time.
Frequently Asked Questions
Why does my gas pump keep shutting off?
Most often, the fuel tank cannot vent properly while refueling. The pump senses pressure and automatically stops filling.
Can hitting a speed bump damage my fuel system?
Yes. A hard impact can damage the fuel filler neck, EVAP lines, charcoal canister, vent valve, or fuel tank, depending on where the vehicle contacted the ground.
Is it safe to keep driving?
Usually yes, but you should have the vehicle inspected as soon as possible. A restricted EVAP system can cause refueling issues and may eventually trigger additional diagnostic trouble codes.
Will replacing the gas cap fix it?
Not usually. While a loose or damaged gas cap can trigger an EVAP code, it typically does not cause the fuel pump to repeatedly shut off during refueling.
Need Fuel System Diagnostics in Hubert, NC?
If your vehicle suddenly won’t accept fuel after hitting a pothole or speed bump, don’t guess at the repair.
At Mobicare Automotive Repair, we perform thorough fuel system and EVAP diagnostics to identify the root cause before recommending repairs.
